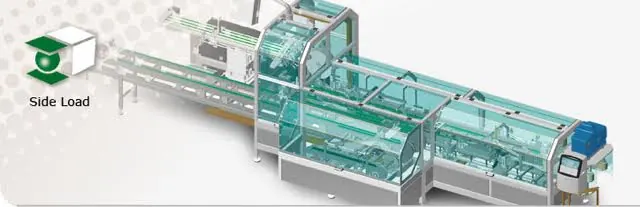

Dienst HK II B

The Dienst HK II B offers medium capacity performance for automating the erecting, filling, and closing of glue closure cartons. It provides a cost-effective solution for medium speed cartoning at rates of up to 120 cartons per minute, with the flexibility to operate in either continuous or intermittent motion. It is available with a variety of infeeds to connect with any product delivery systems. The HK II B offers medium speed automated cartoning with a variety of options to accommodate many food and non-food applications.
Specifications
Product Information:
- Continuous or intermittent mode side load horizontal cartoner
- Single VFD to control all major machine actions
- Carton dimension range:
- A: 80-200mm
- B: 25-100mm
- H: 140-300mm
- Machine dimensions:
- Varies depending on required infeed and discharge systems.
Machine Weight: 2000 kg
Carton Magazine: 2200mm
Performance: 120 Cartons per Minute
Options
- Extended carton blank magazine
- Optional format extension for maximum B dimension of 130mm
- Open flap detection
- Infeed and discharge systems
- Incomplete carton reject
- Plant software (SCADA/Wonderware) integration
- Remote operation and diagnostics
- Printing, labeling, and serialization per customer requirements
Industry Applications
- Candy
- Consumer Products
- Cosmetics
- Dry Foods
- Fresh Foods
- Frozen Foods
- Industrial
- Nutraceutical
- Pastas
- Pharmaceutical
- Rice
- Snack Foods
