Dienst HS IV S

Dientist HV IV S

The Dienst HS IV S is an automated sleeving system for trays and other retail products that are placed on and wrapped in a paperboard sleeve. Finished products enter the infeed of the HS II S and are placed onto the sleeve blank, which is then folded as needed and sealed with hot-melt glue. The sleeves can additionally be affixed directly to the product with glue, if desired. Featuring intermittent or continuous mode operation at up to 200 units per minute, the HS IV S offers high performance in a reliable, cost-effective unit for unique sleeving applications. Further handling or packaging of finished, sleeved units is also available.

  • Specifications
  • Options
  • Industry Applications
  • Photos

Specifications

Product Information:

  • Intermittent or continuous mode sleever
  • All drive axes controlled by servos
  • Product dimension range:
    • A: 70-150mm
    • B: 10-50mm
    • H: 105-200mm
  • Other formats on request

Machine Weight: 1750 kg

Sleeve Magazine: 1200-2000 mm

Performance: 200 Sleeves per Minute

Weight: 1750 kg

Options

  • Infeed and discharge systems
  • Additional folding and gluing stations for special project requirements
  • Plant software (SCADA/Wonderware) integration
  • Remote operation and diagnostics
  • Printing, labeling, and serialization per customer requirements

Industry Applications

  • Candy
  • Cosmetics
  • Dry Foods
  • Fresh Foods
  • Frozen Foods
  • Industrial
  • Nutraceutical
  • Pastas
  • Pet Foods
  • Pharmaceutical
  • Snack Foods

Photos

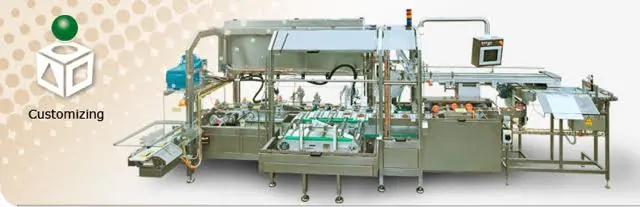

HS IV S Customizing

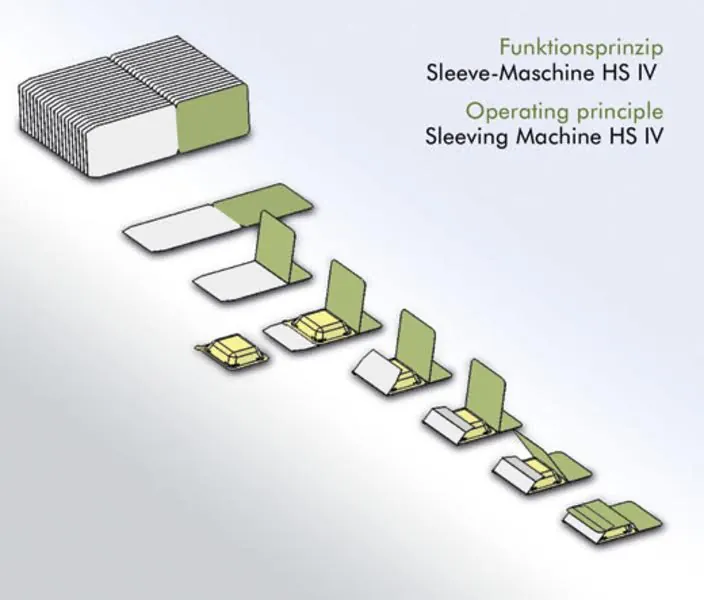

Sleeving Machine HS IV S
