High Speed Compact Cartoner

Dienst VK IV S

Starting at: $239,900.00

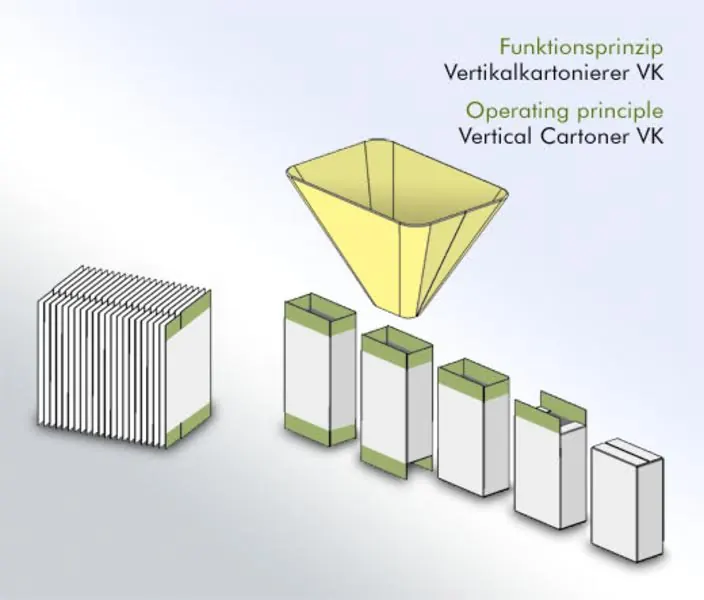

The Dienst VK IV S is a high-speed solution to automated vertical loading of preglued carton blanks. Ideal for products to be loaded into cartons vertically, such as loose fill, bags, wrapped snacks or candies, or powders, the VK IV S can accommodate a variety of volumetric, weight, or piece count systems. Operating in intermittent or continuous mode, the VK IV S can produce up to 160 cartons per minute for high speed applications. Cartons are erected, filled, and closed with hot-melt glue, and can then be encoded or serialized in any means desired. For products that are loaded vertically, the VK IV S is an ideal choice for cartoning automation.

Add to Quote

Specifications

Intermittent or continuous mode vertical cartoner

All drive axes controlled by servos

Case dimension range:

  • A: 70-300mm
  • B: 30-120mm
  • H: 130-350mm

Other formats on request

Carton Magazine

  • 1500-2000mm

Performance

  • 160 Cartons per Minute

Weight

  • 1850 kg

Options

  • Various product dosing options depending on requirements of product
  • Magazine extension for additional case blanks
  • Open flap detection
  • Infeed and discharge systems
  • Incomplete carton reject
  • Plant software (SCADA/Wonderware) integration
  • Remote operation and diagnostics
  • Printing, labeling, and serialization per customer requirements

Industry Applications

  • Consumer Products
  • Cosmetics
  • Dry Foods
  • Fresh Foods
  • Industrial
  • Nutraceutical
  • Pastas
  • Pet Foods
  • Pharmaceutical
  • Snack Foods
